Web page behind Traefik 2.3 shows partially

v-bulynkin · September 29, 2020, 2:53pm

Hello everyone, please help me to understand what is the problem.

I have a test deployment in Docker where Wordpress, Adminer for MariaDB, jlesage/handbrake and tutum/hello-world are behind Traefik 2.3.

Wordpress and Adminer work great, but jlesage/handbrake and tutum/hello-world are shown partially in browser. Here is the docker-compose file:

version: '3'

services:

  reverse-proxy:
    image: traefik
    command: --providers.docker
    ports:
      - "80:80"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock

  db:
    image: mariadb
    restart: always
    environment:
      MYSQL_DATABASE: wordpress
      MYSQL_USER: wordpress
      MYSQL_PASSWORD: sql123
      MYSQL_RANDOM_ROOT_PASSWORD: "yes"
    volumes:
      - db_data:/var/lib/mysql

  adminer:
    depends_on:
      - db
    image: adminer
    restart: always
    labels:
      - "traefik.http.routers.adminer.rule=Host(`docker.domain.local`) && PathPrefix(`/adminer`)"

  wordpress:
    depends_on:
      - db
    image: wordpress:latest
    restart: always
    environment:
      WORDPRESS_DB_HOST: db:3306
      WORDPRESS_DB_USER: wordpress
      WORDPRESS_DB_PASSWORD: sql123
      WORDPRESS_DB_NAME: wordpress
    volumes:
      - wp_data:/var/www/html
    labels:
      - "traefik.http.routers.wordpress.rule=Host(`docker.domain.local`)"

  handbrake:
    image: jlesage/handbrake
    environment:
      TZ: Europe/Moscow
      CLEAN_TMP_DIR: 1
      AUTOMATED_CONVERSION_KEEP_SOURCE: 0
    volumes:
      - ~/proj1/handbrake/config:/config:rw
      - ~/proj1/handbrake/storage:/storage:ro
      - ~/proj1/handbrake/watch:/watch:rw
      - ~/proj1/handbrake/output:/output:rw
    labels:
      - traefik.http.routers.handbrake.rule=host(`docker.domain.local`) && PathPrefix(`/conv`)
      - traefik.http.middlewares.handbrake.stripprefix.prefixes=/conv
      - traefik.http.routers.handbrake.middlewares=handbrake

  hello-world:
    image: tutum/hello-world
    labels:
      - "traefik.http.routers.hello-world.rule=Host(`docker.domain.local`) && PathPrefix(`/hello`)"

volumes:
    db_data: {}
    wp_data: {}

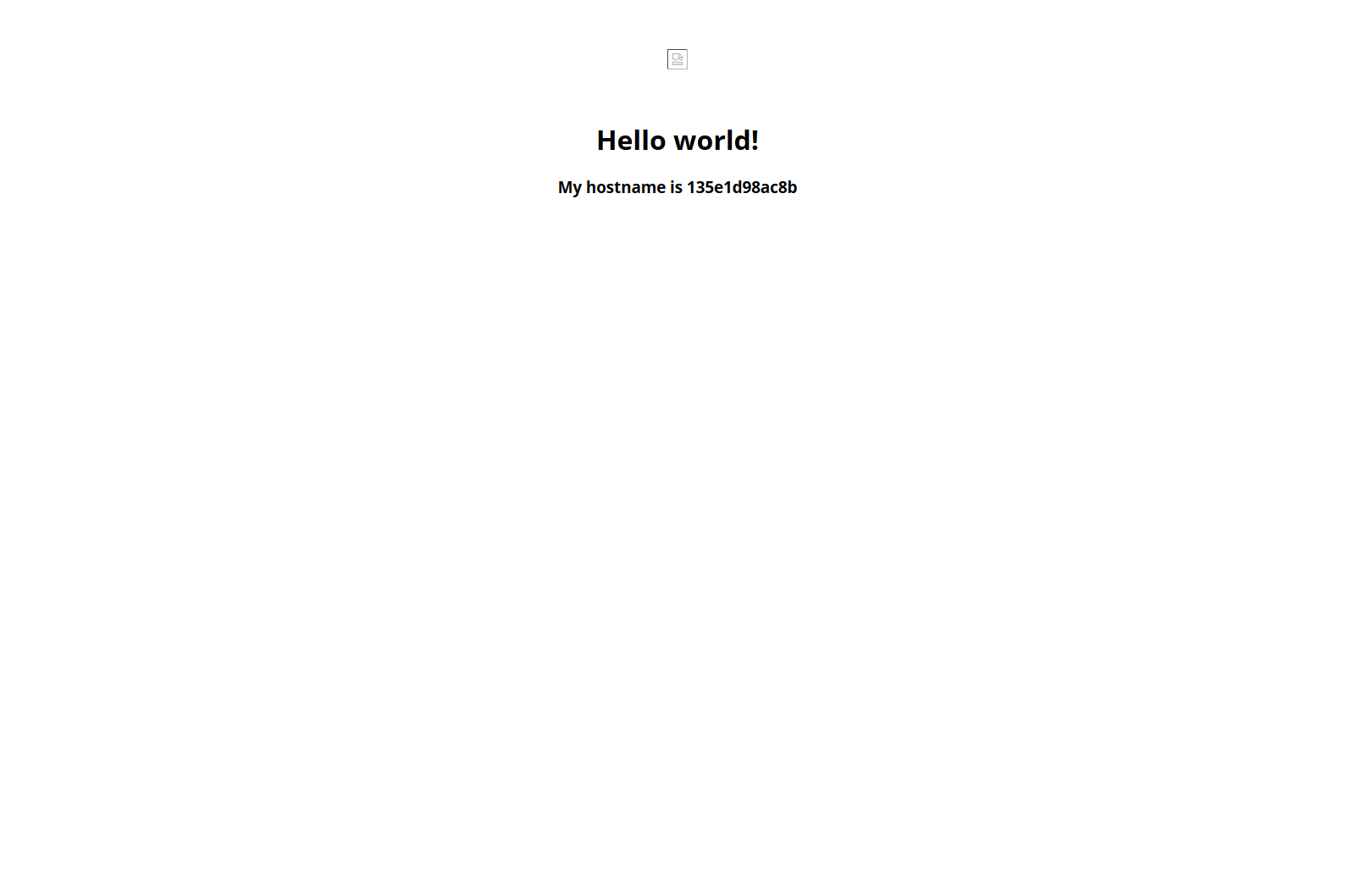

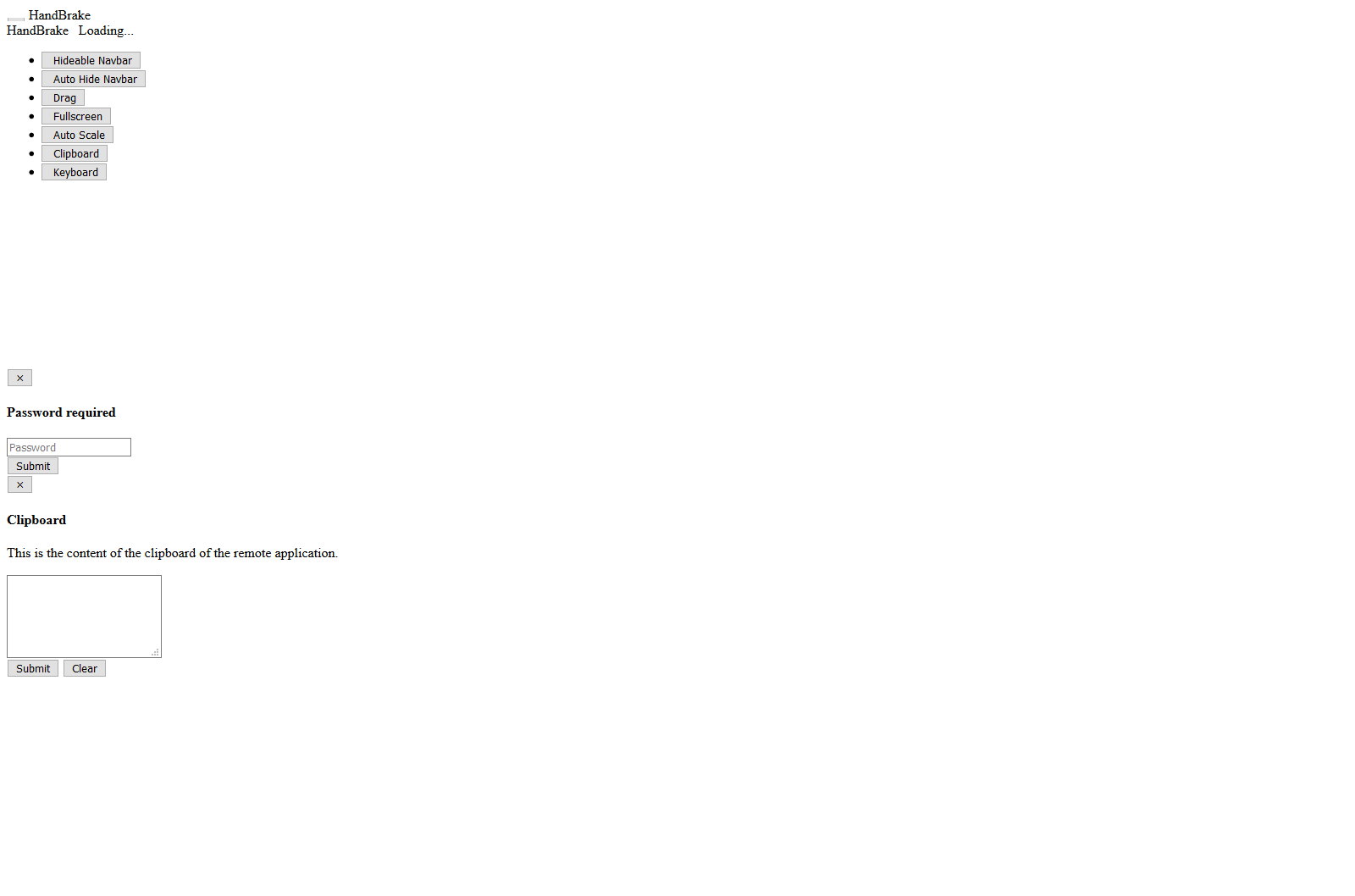

This is how to web pages of hello-world and handbrake are shown:

Could you help me to resolve the problem?

zespri · September 30, 2020, 7:17am

If an application uses absolute references in asset links instead of relative and you strip prefix from url the application will end up not being able to load the assets because they are not where it thinks they are. If you want to host on the same domain but different prefix, there is not a whole lot you can do about that apart from asking for support for that use case from the application vendor.

v-bulynkin · October 3, 2020, 7:24am

If I go to Handbrake page (docker.domain.local/conv), in the Traefik access log I see the following:

192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /conv HTTP/1.1" 304 0 "-" "-" 1 "handbrake@docker" "http://172.19.0.6:5800" 10ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /css/bootstrap.min.css?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 2 "wordpress@docker" "http://172.19.0.5:80" 2ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /css/bootstrap.custom.css?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 3 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /js/jquery.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 4 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /js/jquery-ui.custom.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 5 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /js/jquery.ui.touch-punch.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 6 "wordpress@docker" "http://172.19.0.5:80" 2ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /js/bootstrap.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 7 "wordpress@docker" "http://172.19.0.5:80" 2ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /css/font-awesome.min.css?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 8 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /images/icons/master_icon.png?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 9 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /js/novnc-core.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 11 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:23 +0000] "GET /js/novnc-ui.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 10 "wordpress@docker" "http://172.19.0.5:80" 3ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /js/jquery-ui.custom.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 12 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /js/jquery.ui.touch-punch.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 13 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /js/bootstrap.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 14 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /css/bootstrap.min.css?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 15 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /css/bootstrap.custom.css?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 16 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /css/font-awesome.min.css?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 17 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /js/novnc-core.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 18 "wordpress@docker" "http://172.19.0.5:80" 2ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /js/novnc-ui.min.js?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 19 "wordpress@docker" "http://172.19.0.5:80" 1ms
192.168.1.10 - - [03/Oct/2020:05:45:24 +0000] "GET /images/icons/master_icon.png?v=68029c1cba HTTP/1.1" 404 272 "-" "-" 20 "wordpress@docker" "http://172.19.0.5:80" 1ms

The first query goes to the handbrake container and the rest goes to wordpress, why?

v-bulynkin · October 6, 2020, 7:06am

I found the root of the problem. If the URL is docker.domain.local/conv, the page is shown incorrectly. However, if you add slash to the end of the URL (docker.domain.local/conv/), everything is OK. The problem is nicely described here: https://stackoverflow.com/questions/41637806/routing-paths-with-traefik

      - "traefik.http.routers.handbrake.rule=Host(`docker.domain.local`) && PathPrefix(`/conv`)"
      - "traefik.http.routers.handbrake.middlewares=handbrake-redirectregex, handbrake-replacepathregex"
      - "traefik.http.middlewares.handbrake-replacepathregex.replacepathregex.regex=^/conv/(.*)"
      - "traefik.http.middlewares.handbrake-replacepathregex.replacepathregex.replacement=/$$1"
      - "traefik.http.middlewares.handbrake-redirectregex.redirectregex.regex=^(.*)/conv$$"
      - "traefik.http.middlewares.handbrake-redirectregex.redirectregex.replacement=$$1/conv/"

system · October 9, 2020, 7:06am

This topic was automatically closed 3 days after the last reply. New replies are no longer allowed.
