Hi There,

On a Proxmox server I have 2 LXC 103 and 113
In LXC 103 I have a docker-compose file for 4 services

  • traefik
  • docker-socket
  • portainer
  • authentik

In LXC 113 I have a docker-compose file for multiple services

  • pihole
  • wireguard
  • portainerapps
  • etc

I had in both LXC a traefik running and noticed that the apps where accessible.
But the I stript the traefik from the LXC 113 docker-compose.yml file and started loading with dynamic config file in LXC 103.
I can load with a dynamic config pihole in traefik in LXC 103 but not the second portainer instance. Why is this?

http:
  routers:
    pihole-rpi-rtr:
      rule: "Host(`pihole.{{env "DOMAINNAME"}}`)"
      entryPoints:
        - https
      middlewares:
        - chain-authentik
        - pihole-rpi-add-admin
      service: pihole-rpi-svc
      tls:
        certResolver: dns-cloudflare
  middlewares:
    pihole-rpi-add-admin:
      addPrefix:
        prefix: "/admin"
  services:
    pihole-rpi-svc:
      loadBalancer:
        servers:
          - url: "http://192.168.1.6/"

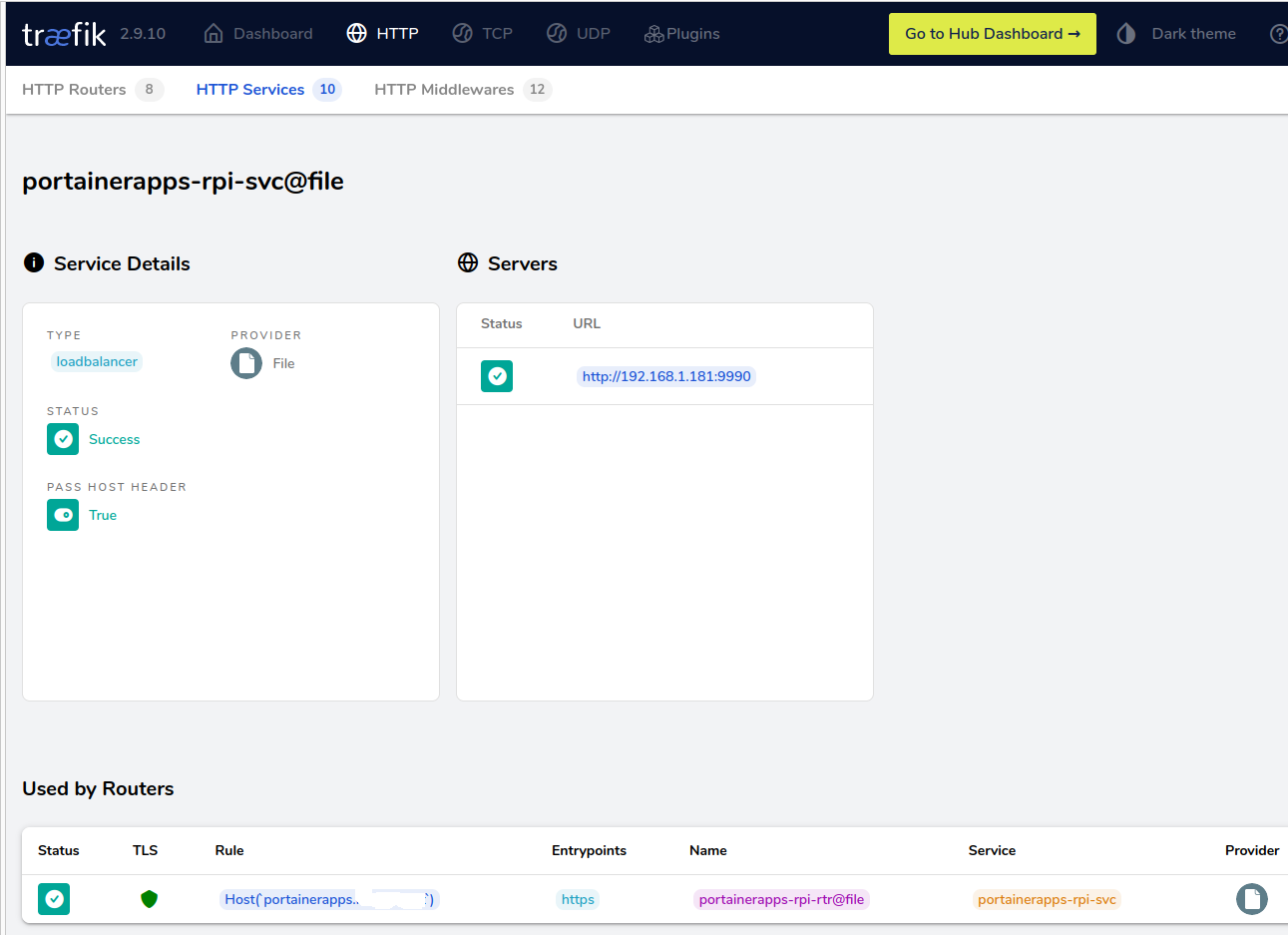

this is the one for portainerapps

  GNU nano 6.2             /home/guyf/docker/appdata/traefik2/rules/app-portainerapps.yml
http:
  routers:
    portainerapps-rpi-rtr:
      rule: "Host(`portainerapps.{{env "DOMAINNAME"}}`)"
      entryPoints:
        - https
      middlewares:
        - chain-no-auth
      service: portainerapps-rpi-svc
      tls:
        certResolver: dns-cloudflare
  services:
    portainerapps-rpi-svc:
      loadBalancer:
        servers:
          - url: "http://192.168.1.181:9990"
2

What’s the error you see? What is Traefik debug log (doc) telling you?

Did you change the DNS entries? Can you connect to each of the services directly from one VM to the other using the IPs?

Share your full Traefik static and dynamic config, and docker-compose.yml if used.

3

This is the docker-compose.yml file from the LXC 103


version: "3.9"

networks:
  t2_proxy:
    name: t2_proxy
    driver: bridge
    ipam:
      config:
        - subnet: 192.168.90.0/24
  default:
    driver: bridge

  socket_proxy:
    name: socket_proxy
    driver: bridge
    ipam:
      config:
        - subnet: 192.168.91.0/24

########################### SECRETS
secrets:
  htpasswd:
    file: $DOCKERDIR/secrets/htpasswd
  cf_email:
    file: $DOCKERDIR/secrets/cf_email
  cf_api_key:
    file: $DOCKERDIR/secrets/cf_api_key
  cf_token:
    file: $DOCKERDIR/secrets/cf_token
  traefik_forward_auth:
    file: $DOCKERDIR/secrets/traefik_forward_auth
  mysql_root_password:
    file: $DOCKERDIR/secrets/mysql_root_password
  smtp_password:
    file: $DOCKERDIR/secrets/smtp_password
  guac_db_name:
    file: $DOCKERDIR/secrets/guac_db_name
  guac_mysql_user:
    file: $DOCKERDIR/secrets/guac_mysql_user
  guac_mysql_password:
    file: $DOCKERDIR/secrets/guac_mysql_password
  # Authentik Postgres
  authentik_postgresql_db:
    file: $DOCKERDIR/secrets/authentik_postgresql_db
  authentik_postgresql_user:
    file: $DOCKERDIR/secrets/authentik_postgresql_user
  authentik_postgresql_password:
    file: $DOCKERDIR/secrets/authentik_postgresql_password
  # Authentik
  authentik_secret_key:
    file: $DOCKERDIR/secrets/authentik_secret_key
  # GMail Auth Account
  NORDVPN_USER:
    file: $DOCKERDIR/secrets/NORDVPN_USER
  NORDVPN_PASSWD:
    file: $DOCKERDIR/secrets/NORDVPN_PASSWD
  #traefik_hub_agent_token:
  #  file: $DOCKERDIR/secrets/traefik_hub_agent_token

########################### EXTENSION FIELDS
# Helps eliminate repetition of sections
# More Info on how to use this: https://github.com/htpcBeginner/docker-traefik/pull/228

# Common environment values
x-environment: &default-tz-puid-pgid
  TZ: $TZ
  PUID: $PUID
  PGID: $PGID
  tty: true

# Keys common to some of the services in basic-services.txt
x-common-keys-core: &common-keys-core
  networks:
    - t2_proxy
  security_opt:
    - no-new-privileges:true
  restart: always
  tty: true
  # profiles:
  # - core

# Keys common to some of the services in basic-services.txt
x-common-keys-monitoring: &common-keys-monitoring
  networks:
    - t2_proxy
  security_opt:
    - no-new-privileges:true
  restart: always
  tty: true
  # profiles:
  # - monitoring

# Keys common to some of the dependent services/apps
x-common-keys-apps: &common-keys-apps
  networks:
    - t2_proxy
  security_opt:
    - no-new-privileges:true
  restart: unless-stopped
  tty: true
  # profiles:
  # - apps

# Keys common to some of the services in media-services.txt
x-common-keys-media: &common-keys-media
  networks:
    - t2_proxy
  security_opt:
    - no-new-privileges:true
  restart: "no"
  tty: true
  # profiles:
  # - media

########################### SERVICES
services:
  ############################# FRONTENDS

  # Traefik 2 - Reverse Proxy
  # Touch (create empty files) traefik.log and acme/acme.json. Set acme.json permissions to 600.
  # touch $DOCKERDIR/appdata/traefik2/acme/acme.json
  # chmod 600 $DOCKERDIR/appdata/traefik2/acme/acme.json
  # touch $DOCKERDIR/logs/cloudserver/traefik.log
  # touch $DOCKERDIR/logs/cloudserver/access.log

  traefik:
    <<: *common-keys-core # See EXTENSION FIELDS at the top
    container_name: traefik
    image: traefik:2.9
    command: # CLI arguments
      - --global.checkNewVersion=true
      - --global.sendAnonymousUsage=true
      - --entryPoints.http.address=:80
      - --entryPoints.https.address=:443
      # Allow these IPs to set the X-Forwarded-* headers - Cloudflare IPs: https://www.cloudflare.com/ips/
      - --entrypoints.https.forwardedHeaders.trustedIPs=$CLOUDFLARE_IPS,$LOCAL_IPS
      - --entryPoints.traefik.address=:8080
      # - --entryPoints.ping.address=:8081
      - --api=true
      # - --api.insecure=true
      - --api.dashboard=true
      #- --ping=true
      # - --serversTransport.insecureSkipVerify=true
      - --log=true
      - --log.filePath=/logs/traefik.log
      - --log.level=INFO # (Default: error) DEBUG, INFO, WARN, ERROR, FATAL, PANIC
      - --accessLog=true
      - --accessLog.filePath=/logs/access.log
      - --accessLog.bufferingSize=100 # Configuring a buffer of 100 lines
      - --accessLog.filters.statusCodes=204-299,400-499,500-599
      - --providers.docker=true
      # - --providers.docker.endpoint=unix:///var/run/docker.sock # Use Docker Socket Proxy instead for improved security
      - --providers.docker.endpoint=tcp://socket-proxy:2375
      # Automatically set Host rule for services
      # - --providers.docker.defaultrule=Host(`{{ index .Labels "com.docker.compose.service" }}.$DOMAINNAME`)
      - --providers.docker.exposedByDefault=false
      # - --entrypoints.https.http.middlewares=chain-oauth@file
      - --entrypoints.https.http.tls.options=tls-opts@file
      # Add dns-cloudflare as default certresolver for all services. Also enables TLS and no need to specify on individual services
      - --entrypoints.https.http.tls.certresolver=dns-cloudflare
      - --entrypoints.https.http.tls.domains[0].main=$DOMAINNAME
      - --entrypoints.https.http.tls.domains[0].sans=*.$DOMAINNAME
      # - --entrypoints.https.http.tls.domains[1].main=$DOMAINNAME2 # Pulls main cert for second domain
      # - --entrypoints.https.http.tls.domains[1].sans=*.$DOMAINNAME2 # Pulls wildcard cert for second domain
      - --providers.docker.network=t2_proxy
      - --providers.docker.swarmMode=false
      - --providers.file.directory=/rules # Load dynamic configuration from one or more .toml or .yml files in a directory
      # - --providers.file.filename=/path/to/file # Load dynamic configuration from a file
      - --providers.file.watch=true # Only works on top level files in the rules folder
      # - --certificatesResolvers.dns-cloudflare.acme.caServer=https://acme-staging-v02.api.letsencrypt.org/directory # LetsEncrypt Staging Server - uncomment when testing
      - --certificatesResolvers.dns-cloudflare.acme.email=$CLOUDFLARE_EMAIL
      - --certificatesResolvers.dns-cloudflare.acme.storage=/acme.json
      - --certificatesResolvers.dns-cloudflare.acme.dnsChallenge.provider=cloudflare
      - --certificatesResolvers.dns-cloudflare.acme.dnsChallenge.resolvers=1.1.1.1:53,1.0.0.1:53
      - --certificatesResolvers.dns-cloudflare.acme.dnsChallenge.delayBeforeCheck=90 # To delay DNS check and reduce LE hitrate
      # - --metrics.prometheus=true
      # - --metrics.prometheus.buckets=0.1,0.3,1.2,5.0
    networks:
      t2_proxy:
        ipv4_address: 192.168.90.254
      socket_proxy:
    #healthcheck:
    #  test: ["CMD", "traefik", "healthcheck", "--ping"]
    #  interval: 5s
    #  retries: 3
    ports:
      - target: 80
        published: 80
        protocol: tcp
        mode: host
      - target: 443
        published: 443
        protocol: tcp
        mode: host
      # - target: 8080 # insecure api wont work
      #   published: 8080
      #   protocol: tcp
      #   mode: host
    volumes:
      - $DOCKERDIR/appdata/traefik2/rules:/rules # file provider directory
      # - /var/run/docker.sock:/var/run/docker.sock:ro # Use Docker Socket Proxy instead for improved security
      - $DOCKERDIR/appdata/traefik2/acme/acme.json:/acme.json # cert location - you must create this emtpy file and change permissions to 600
      - $DOCKERDIR/logs:/logs
    environment:
      - TZ=$TZ
      - CF_API_EMAIL_FILE=/run/secrets/cf_email
      - CF_API_KEY_FILE=/run/secrets/cf_api_key
      - HTPASSWD_FILE=/run/secrets/htpasswd # HTPASSWD_FILE can be whatever as it is not used/called anywhere.
      - DOMAINNAME # Passing the domain name to traefik container to be able to use the variable in rules.
    secrets:
      - cf_email
      - cf_api_key
      - htpasswd
    labels:
      #- "autoheal=true"
      - "traefik.enable=true"
      # HTTP-to-HTTPS Redirect
      - "traefik.http.routers.http-catchall.entrypoints=http"
      - "traefik.http.routers.http-catchall.rule=HostRegexp(`{host:.+}`)"
      - "traefik.http.routers.http-catchall.middlewares=redirect-to-https"
      - "traefik.http.middlewares.redirect-to-https.redirectscheme.scheme=https"
      # HTTP Routers
      - "traefik.http.routers.traefik-rtr.entrypoints=https"
      - "traefik.http.routers.traefik-rtr.rule=Host(`traefik.$DOMAINNAME`)"
      - "traefik.http.routers.traefik-rtr.tls=true" # Some people had 404s without this
      - "traefik.http.routers.traefik-rtr.tls.certresolver=dns-cloudflare" # Comment out this line after first run of traefik to force the use of wildcard certs
      - "traefik.http.routers.traefik-rtr.tls.domains[0].main=$DOMAINNAME"
      - "traefik.http.routers.traefik-rtr.tls.domains[0].sans=*.$DOMAINNAME"
      # - "traefik.http.routers.traefik-rtr.tls.domains[1].main=$DOMAINNAME2" # Pulls main cert for second domain
      # - "traefik.http.routers.traefik-rtr.tls.domains[1].sans=*.$DOMAINNAME2" # Pulls wildcard cert for second domain
      ## Services - API
      - "traefik.http.routers.traefik-rtr.service=api@internal"
      ## Healthcheck/ping
      #- "traefik.http.routers.ping.rule=Host(`traefik.$DOMAINNAME`) && Path(`/ping`)"
      #- "traefik.http.routers.ping.tls=true"
      #- "traefik.http.routers.ping.service=ping@internal"
      ## Middlewares
      - "traefik.http.routers.traefik-rtr.middlewares=chain-no-auth@file" # For No Authentication
      #- "traefik.http.routers.traefik-rtr.middlewares=middlewares-rate-limit@file,middlewares-https-redirectscheme@file,middlewares-secure-headers@file,middlewares-basic-auth@file"
      #- "traefik.http.routers.traefik-rtr.middlewares=chain-basic-auth@file" # For Basic HTTP Authentication
      #- "traefik.http.routers.traefik-rtr.middlewares=chain-oauth@file" # For Google OAuth
      #- "traefik.http.routers.traefik-rtr.middlewares=chain-authelia@file" # For Authelia Authentication

  # Docker Socket Proxy - Security Enchanced Proxy for Docker Socket
  socket-proxy:
    <<: *common-keys-core # See EXTENSION FIELDS at the top
    container_name: socket-proxy
    image: tecnativa/docker-socket-proxy
    networks:
      socket_proxy:
        ipv4_address: 192.168.91.254 # You can specify a static IP
    # privileged: true # true for VM. False for unprivileged LXC container.
    ports:
    # - "127.0.0.1:2375:2375" # Port 2375 should only ever get exposed to the internal network. When possible use this line.
    # I use the next line instead, as I want portainer to manage multiple docker endpoints within my home network.
      - "2375:2375"
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
    environment:
      - LOG_LEVEL=info # debug,info,notice,warning,err,crit,alert,emerg
      ## Variables match the URL prefix (i.e. AUTH blocks access to /auth/* parts of the API, etc.).
      # 0 to revoke access.
      # 1 to grant access.
      ## Granted by Default
      - EVENTS=1
      - PING=1
      - VERSION=1
      ## Revoked by Default
      # Security critical
      - AUTH=0
      - SECRETS=0
      - POST=1 # Watchtower
      # Not always needed
      - BUILD=0
      - COMMIT=0
      - CONFIGS=0
      - CONTAINERS=1 # Traefik, portainer, etc.
      - DISTRIBUTION=0
      - EXEC=0
      - IMAGES=1 # Portainer
      - INFO=1 # Portainer
      - NETWORKS=1 # Portainer
      - NODES=0
      - PLUGINS=0
      - SERVICES=1 # Portainer
      - SESSION=0
      - SWARM=0
      - SYSTEM=0
      - TASKS=1 # Portainer
      - VOLUMES=1 # Portainer

  # Portainer - WebUI for Containers
  portainer:
    <<: *common-keys-core # See EXTENSION FIELDS at the top
    container_name: portainer
    image: portainer/portainer-ce:2.16.1
    # command: -H unix:///var/run/docker.sock # # Use Docker Socket Proxy instead for improved security
    command: -H tcp://socket-proxy:2375
             --log-level DEBUG
    networks:
      t2_proxy:
      socket_proxy:
        ipv4_address: 192.168.91.5
    ports:
      #- "$PORTAINER_PORT:9000"
      - 9900:9900
    volumes:
      # - /var/run/docker.sock:/var/run/docker.sock:ro # # Use Docker Socket Proxy instead for improved security
      - $DOCKERDIR/appdata/portainer/data:/data # Change to local directory if you want to save/transfer config locally
    environment:
      - TZ=$TZ
    labels:
      - "traefik.enable=true"
      ## HTTP Routers
      - "traefik.http.routers.portainer-rtr.entrypoints=https"
      - "traefik.http.routers.portainer-rtr.rule=Host(`portainer.$DOMAINNAME`)"
      - "traefik.http.routers.portainer-rtr.tls=true"
      ## Middlewares
      - "traefik.http.routers.portainer-rtr.middlewares=chain-no-auth@file"
      #- "traefik.http.routers.portainer-rtr.middlewares=chain-oauth@file"
      #- "traefik.http.routers.portainer-rtr.middlewares=middlewares-basic-auth@file"
      #- "traefik.http.routers.portainer-rtr.middlewares=chain-basic-auth@file"
      #- "traefik.http.routers.portainer-rtr.middlewares=chain-authelia@file"
      #- "traefik.http.routers.portainer-rtr.middlewares=chain-authentik@file"
      ## HTTP Services
      - "traefik.http.routers.portainer-rtr.service=portainer-svc"
      - "traefik.http.services.portainer-svc.loadbalancer.server.port=9000"





  postgresql:
    image: postgres:12-alpine
    container_name: authentik_postgres
    restart: unless-stopped
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -d $${POSTGRES_DB} -U $${POSTGRES_USER}"]
      start_period: 20s
      interval: 30s
      retries: 5
      timeout: 5s
    networks:
      - t2_proxy
    volumes:
      - "$DOCKERDIR/appdata/authentik/postgresql/data:/var/lib/postgresql/data"
    environment:
      - POSTGRES_DB
      - POSTGRES_USER
      - POSTGRES_PASSWORD
    secrets:
      - authentik_postgresql_db
      - authentik_postgresql_user
      - authentik_postgresql_password
#      - POSTGRES_PASSWORD=${PG_PASS:?database password required}
#      - POSTGRES_USER=${PG_USER:-authentik}
#      - POSTGRES_DB=${PG_DB:-authentik}
#    env_file:
#      - .env
  redis:
    image: docker.io/library/redis:alpine
    container_name: authentik_redis
    command: --save 60 1 --loglevel warning
    restart: unless-stopped
    healthcheck:
      test: ["CMD-SHELL", "redis-cli ping | grep PONG"]
      start_period: 20s
      interval: 30s
      retries: 5
      timeout: 3s
    networks:
      - t2_proxy
#    volumes:
#      - redis:/data produces error

  authentik:
    container_name: authentik_server
    hostname: authentik_server
    image: ghcr.io/goauthentik/server:latest
    restart: unless-stopped
    command: server
    networks:
      - t2_proxy
    environment:
      - AUTHENTIK_REDIS__HOST
      - AUTHENTIK_POSTGRESQL__HOST
      - AUTHENTIK_POSTGRESQL__NAME
      - AUTHENTIK_POSTGRESQL__USER
      - AUTHENTIK_POSTGRESQL__PASSWORD
      - AUTHENTIK_EMAIL__PASSWORD
      - AUTHENTIK_ERROR_REPORTING__ENABLED
      - AUTHENTIK_SECRET_KEY
      - AUTHENTIK_COOKIE_DOMAIN
      # - WORKERS
    volumes:
      - "$DOCKERDIR/appdata/authentik/media:/media"
      - "$DOCKERDIR/appdata/authentik/custom-templates:/templates"
      - "$DOCKERDIR/appdata/authentik/geoip/data:/geoip"
    secrets:
      - authentik_postgresql_db
      - authentik_postgresql_user
      - authentik_postgresql_password
      - smtp_password
      - authentik_secret_key
    ports:
      - "${COMPOSE_PORT_HTTP:-9000}:9000"
      - "${COMPOSE_PORT_HTTPS:-9443}:9443"
    depends_on:
      - postgresql
      - redis
    labels:
          - "traefik.enable=true"
          ## HTTP Routers
          #- traefik.http.routers.authentik-rtr.rule: Host(`authentik.$DOMAINNAME`)
          - "traefik.http.routers.authentik-rtr.rule=Host(`authentik.$DOMAINNAME`)|| HostRegexp(`{subdomain:[A-Za-z0-9]+}.$DOMAINNAME`) && PathPrefix(`/outpost.goauthentik.io/`)"
          - "traefik.http.routers.authentik-rtr.entrypoints=https"
          - "traefik.http.routers.authentik-rtr.priority=1"
          - "traefik.http.routers.authentik-rtr.tls=true"
          - "traefik.http.routers.authentik-rtr.tls.certresolver=dns-cloudflare"

  authentik-worker:
    container_name: authentik_worker
    hostname: authentik_worker
    image:  ghcr.io/goauthentik/server:latest
    restart: unless-stopped
    command: worker
    networks:
      - t2_proxy
    user: root
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - $DOCKERDIR/appdata/authentik/media:/media
      - $DOCKERDIR/appdata/authentik/templates:/templates
      - $DOCKERDIR/appdata/authentik/geoip/data:/geoip
    environment:
      - AUTHENTIK_REDIS__HOST
      - AUTHENTIK_POSTGRESQL__HOST
      - AUTHENTIK_POSTGRESQL__NAME
      - AUTHENTIK_POSTGRESQL__USER
      - AUTHENTIK_POSTGRESQL__PASSWORD
      - AUTHENTIK_EMAIL__PASSWORD
      - AUTHENTIK_ERROR_REPORTING__ENABLED
      - AUTHENTIK_SECRET_KEY
      - AUTHENTIK_COOKIE_DOMAIN
    secrets:
      - authentik_postgresql_db
      - authentik_postgresql_user
      - authentik_postgresql_password
      - smtp_password
      - authentik_secret_key
    #env_file:
    #  - .env
  geoipupdate:
    image: maxmindinc/geoipupdate:latest
    container_name: geoipupdate
    restart: unless-stopped
    volumes:
      - "$DOCKERDIR/appdata/authentik/geoip/data:/usr/share/GeoIP"
    environment:
      - GEOIPUPDATE_EDITION_IDS
      - GEOIPUPDATE_FREQUENCY
      - GEOIPUPDATE_ACCOUNT_ID
      - GEOIPUPDATE_LICENSE_KEY

  whoami-test:
    image: traefik/whoami
    container_name: whoami-test
    restart: unless-stopped
    security_opt:
      - no-new-privileges:true
    networks:
      - t2_proxy
    environment:
      - TZ
    labels:
      - "traefik.enable=true"
      ## HTTP Routers
      - "traefik.http.routers.whoami-test-rtr.rule=Host(`whoami-test.$DOMAINNAME`)"
      - "traefik.http.routers.whoami-test-rtr.entrypoints=https"
      - "traefik.http.routers.whoami-test-rtr.tls=true"
      - "traefik.http.routers.whoami-test-rtr.tls.certresolver=dns-cloudflare"
      ## Middlewares
      - "traefik.http.routers.whoami-test-rtr.middlewares=chain-authentik@file"

In traefik Dashboard I see the http router and everything is green
In traefik Dashboard I see the service status green and pointing to http://192.168.1.181:9990

This traefik normal log
time="2023-09-05T15:58:16+02:00" level=info msg="Traefik version 2.9.10 built on 2023-04-06T16:15:08Z"
time="2023-09-05T15:58:16+02:00" level=info msg="Stats collection is enabled."
time="2023-09-05T15:58:16+02:00" level=info msg="Many thanks for contributing to Traefik's improvement by allowing us to receive anonymous information from your configuration."
time="2023-09-05T15:58:16+02:00" level=info msg="Help us improve Traefik by leaving this feature on :)"
time="2023-09-05T15:58:16+02:00" level=info msg="More details on: Traefik Data Collection Documentation - Traefik"
time="2023-09-05T15:58:16+02:00" level=info msg="Starting provider aggregator aggregator.ProviderAggregator"
time="2023-09-05T15:58:16+02:00" level=info msg="Starting provider *file.Provider"
time="2023-09-05T15:58:16+02:00" level=info msg="Starting provider *traefik.Provider"
time="2023-09-05T15:58:16+02:00" level=info msg="Starting provider *docker.Provider"
time="2023-09-05T15:58:16+02:00" level=info msg="Starting provider *acme.ChallengeTLSALPN"
time="2023-09-05T15:58:16+02:00" level=info msg="Starting provider *acme.Provider"
time="2023-09-05T15:58:16+02:00" level=info msg="Testing certificate renew..." providerName=dns-cloudflare.acme ACME CA="https://acme-v02.api.letsencrypt.org/directory"

logs from traefik

192.168.1.70 - - [05/Sep/2023:14:04:27 +0000] "GET / HTTP/2.0" 499 21 "-" "-" 6 "portainerapps-rpi-rtr@file" "http://192.168.1.181:9990" 2502ms
192.168.1.70 - - [05/Sep/2023:14:04:30 +0000] "POST /signalr/messages/negotiate?access_token=d26348e2ce7fbed73895e2&negotiateVersion=1 HTTP/2.0" 502 45 "-" "-" 9 "prowlarr-rpi-rtr@file" "-" 31ms


  GNU nano 6.2                                                                                       /home/guyf/docker/logs/traefik.log
time="2023-09-05T16:08:04+02:00" level=info msg="Traefik version 2.9.10 built on 2023-04-06T16:15:08Z"
time="2023-09-05T16:08:04+02:00" level=info msg="Stats collection is enabled."
time="2023-09-05T16:08:04+02:00" level=info msg="Many thanks for contributing to Traefik's improvement by allowing us to receive anonymous information from your configuration."
time="2023-09-05T16:08:04+02:00" level=info msg="Help us improve Traefik by leaving this feature on :)"
time="2023-09-05T16:08:04+02:00" level=info msg="More details on: https://doc.traefik.io/traefik/contributing/data-collection/"
time="2023-09-05T16:08:04+02:00" level=info msg="Starting provider aggregator aggregator.ProviderAggregator"
time="2023-09-05T16:08:04+02:00" level=info msg="Starting provider *file.Provider"
time="2023-09-05T16:08:04+02:00" level=info msg="Starting provider *traefik.Provider"
time="2023-09-05T16:08:04+02:00" level=info msg="Starting provider *acme.Provider"
time="2023-09-05T16:08:04+02:00" level=info msg="Testing certificate renew..." ACME CA="https://acme-v02.api.letsencrypt.org/directory" providerName=dns-cloudflare.acme
time="2023-09-05T16:08:04+02:00" level=info msg="Starting provider *acme.ChallengeTLSALPN"
time="2023-09-05T16:08:04+02:00" level=info msg="Starting provider *docker.Provider"
4

What's the error?

Let go back to the basics. You are running one server with Proxmox. You are running two Linux Containers on it 103 and 113. Those are not VMs.

Within those containers you are running more Docker containers? LXC is not Docker, but you use Traefik Docker Configuration Discovery?

How are the two LXC containers connected? Routing is enabled? They can connect to the IP of individual Docker containers within another LXC container?

5

Within those containers you are running more Docker containers? LXC is not Docker, but you use Traefik Docker Configuration Discovery?

Yes I have In my
LXC 103 container the provided docker-compose.yml
LXC 113 container another docker-composeAPPS.yml

both are running as I see with output docker ps -a

How are the two LXC containers connected? Routing is enabled? They can connect to the IP of individual Docker containers within another LXC container?

The LXC 113 has a IP 192.168.1.188
The LXC 103 has a IP 192.168.1.100

What's the error?

Traefik doesn't produce errors

time="2023-09-05T16:34:19+02:00" level=info msg="Traefik version 2.9.10 built on 2023-04-06T16:15:08Z"
time="2023-09-05T16:34:19+02:00" level=info msg="Stats collection is enabled."
time="2023-09-05T16:34:19+02:00" level=info msg="Many thanks for contributing to Traefik's improvement by allowing us to receive anonymous information from your configuration."
time="2023-09-05T16:34:19+02:00" level=info msg="Help us improve Traefik by leaving this feature on :)"
time="2023-09-05T16:34:19+02:00" level=info msg="More details on: https://doc.traefik.io/traefik/contributing/data-collection/"
time="2023-09-05T16:34:19+02:00" level=info msg="Starting provider aggregator aggregator.ProviderAggregator"
time="2023-09-05T16:34:19+02:00" level=info msg="Starting provider *file.Provider"
time="2023-09-05T16:34:19+02:00" level=info msg="Starting provider *traefik.Provider"
time="2023-09-05T16:34:19+02:00" level=info msg="Starting provider *docker.Provider"
time="2023-09-05T16:34:19+02:00" level=info msg="Starting provider *acme.ChallengeTLSALPN"
time="2023-09-05T16:34:19+02:00" level=info msg="Starting provider *acme.Provider"
time="2023-09-05T16:34:19+02:00" level=info msg="Testing certificate renew..." providerName=dns-cloudflare.acme ACME CA="https://acme-v02.api.letsencrypt.org/directory"
time="2023-09-05T16:44:19+02:00" level=info msg="Anonymous stats sent to https://collect.traefik.io/9vxmmkcdmalbdi635d4jgc5p5rx0h7h8: {\"global\":{\"checkNewVersion\":true,\"sendAnonymousUsage\":true},\"serversTransport\":{\"maxIdl>
time="2023-09-05T16:44:20+02:00" level=warning msg="A new release has been found: 2.10.4. Please consider updating."

Screenshot from 2023-09-05 16-55-40
Screenshot from 2023-09-05 16-55-401290×899 89.4 KB

Screenshot from 2023-09-05 16-57-20
Screenshot from 2023-09-05 16-57-201291×937 63.8 KB

6

I still don’t understand.

My current assumption is you run LXC containers like a VM, each gets an IP.

Within the LXC container you run a docker-compose.yml, then you get 4 containers inside the LXC container.

You seem to expose some ports of the services/containers from compose, but those would only be available within the LXC.

So you can not connect from one container within LXC to another container in another LXC.

Is there a reason for using 2 LXC. If you need to use two LXC, have you thought about using Docker Swarm?

Maybe I know too little about Proxmox and you can provide some screenshots.

7

My current assumption is you run LXC containers like a VM, each gets an IP.

Yes a LXC is like a VM only much smaller and the kernel from the host is shared.

So in my LXC 103 where traefik is hosted I have this

Screenshot from 2023-09-05 17-30-16
Screenshot from 2023-09-05 17-30-161327×935 88.5 KB

So you can not connect from one container within LXC to another container in another LXC.

This doesn't seem true as prowlarr app is hosted in another (113) docker instance and found by the first docker container in LXC 103

Pihole and wireguard are apps that are hosted in their own LXC.

I wanted to have multiple docker containers for separating main from apps
